Steel Pipes Auto Hot Dip Galvanizing Production Line Plant Workshop
Equipment Supplier Turnkey Project One-stop Service
Design Principle
The hot dip galvanizing line is designed in accordance with related
domestic and international stands, meeting all your requirements
for the process flow,production capacity and techniques. As a kind
of eco-friendly and energy saving line, it can maintain a good
production environment, reliable production performance, and
prolong service life.

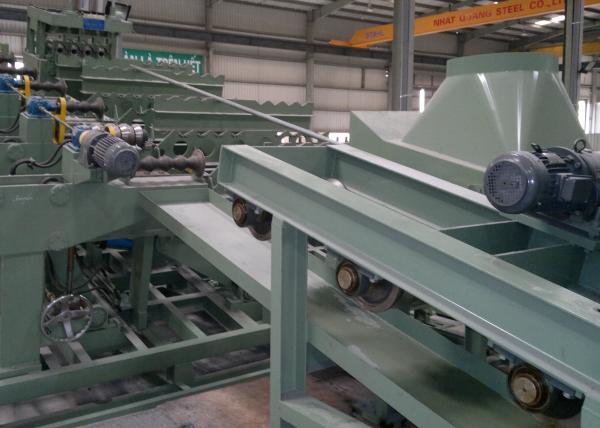

Working Process of Steel Pipes Hot Dip Galvanizing Production Line
- Hanging the pipes to the platform, select the pipe and enter the
stepper machine
- Dry the steel pipe by drying furnace
- Enter zinc kettle again and pulled out transmission equipment by
transmission device
- Blow away outside extra zinc liquid by external blowing device
- Cross transfer device
- Blow away inside extra zinc liquid by internal blowing device
- Cross transfer device
- Lift up device
- After chain conveyor sent it to the cooling machine
- By chain conveyor to drying platform
- Fall into collecting tank and package or to spray machine
- Then transfer to the screwed steel pipe fitting equipment
(optional)
- After being protected by the screwed fitting equipment, put the
pipe into collecting tank and start manual packing
Technical parameter
| 1 | Length of galvanized pipe | Depending on the customer |
| 2 | Production model | Depending on the output capacity |
| 3 | Size of zinc pot | Depending on the length of the pipe |
| 4 | Power | 380V, 50Hz, 3Phase |
Main Equipment of Steel Pipes Hot Dip Galvanizing Production Line
| 1 | Pretreatment prepare | |
| 2 | Drying part | after pretreatment |
| 3 | Galvanizing | zinc pot/kettle, heating furnace, and the combustion system |
| galvanizing machine and the dust filter system |
| pulling-out and pulling upwards system |
| 4 | After galvanizing | transverse stepping machine and the combined inner blow |
| zinc powder recycle system |
| pipe cooling |
| spray passivation |
| 5 | After treatment works | mark printing |
| packing |
Supporting Equipment of Steel Pipes Hot Dip Galvanizing Production Line
| 1 | Zinc smoke removal equipment | Internal/external blowing |
| 2 | Acid mist treatment equipment | Does not contain acid mist workshop |
| 3 | Wastewater treatment equipment | Does not contain waste acid treatment |
| 4 | Pickling crane | Auto control |
| 5 | Fluxing tank iron removal equipment | below1g/L |
| 6 | Waste heat heating system | for fluxing & degreasing tank |
| 7 | ... | ... |
Advantages
Professional designer and manufacture of galvanizing lines.
1.Who we are:
we are planner and manufacture of complete galvanizing plants for
the hot-dip galvanizing industry.
We offer plant layout planning, supply the galvanizing equipment,
install and start-up the hot-dip galvanizing plant, train the
personnel and provide technical consulting.
2.Have confidence in us:
More than 27 years experience in the hot-dip galvanizing industry,
our product range will meet your requirements. And our equipment is
tested by our worldwide customers, they all satisfied with the high
quality and acceptable price.
3.To know us better:
If you want to know whether you money is worth to buy our equipment
and whether our company has the ability to meet your requirements,
we are expecting a facial conversation with you to solve your
questions and to let you know what can we do.
Contact Us
If our products interest you, please contact us.
Meanwhile, please tell us the following information.
Materials to be galvanized
Biggest dimension or kettle size
Maximum weight
Maximum capacity per year
Power source
Fuel
